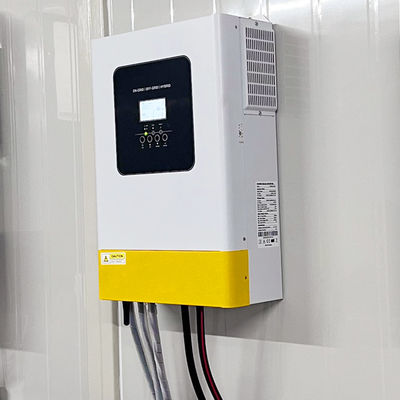

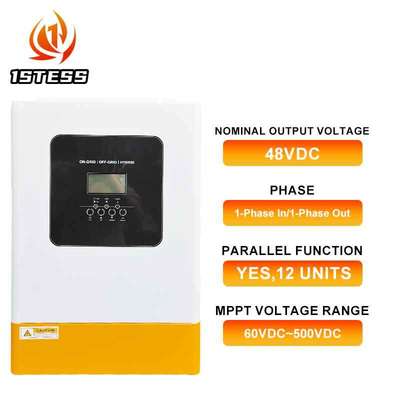

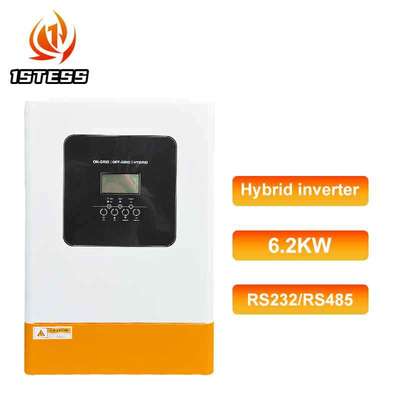

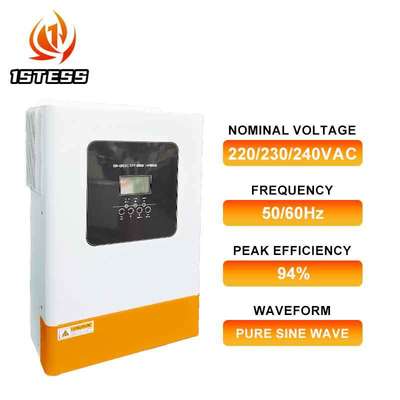

Hybrid Solar Inverter 5.5kW 48V Single Phase Pure Sine Wave Off Grid 5.5KVA 5500W Solar Inverter Parallel 12 Units
| Plaats van herkomst | Guangdong, China |
|---|---|
| Merknaam | COENG |
| Certificering | CE, IEC |
| Modelnummer | GM (PV60-500VDC) 6200-48PL |
| Document | GM Series 5.5 - 6.2KW.pdf |
| Min. bestelaantal | 1 |
| Verpakking Details | Doos, pallet |
| Levertijd | 10-30 werkdagen |
| Betalingscondities | L/C, T/T, Western Union |
| Levering vermogen | 20000 -stuk/maand |
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Maat | 450*300*130 mm | Batterijspanning | 48V |
|---|---|---|---|
| Invoerspanning | 230VAC | OEM | Accepteer OEM |
| Omvormer type | hybride zonne -omvormer | Uitgangstype | Enkele, pure sinusgolf |
| Grof gewicht | 10kg | ||
| Markeren | 5.5kW hybrid solar inverter,48V off grid inverter,pure sine wave solar inverter |
||
Productomschrijving
| MODEL | GM5500-48PL | GM6200-48PL |
|---|---|---|
| Phase | 1-Phase In/1-Phase Out | 1-Phase In /1-Phase Out |
| Maximum PV input power | 5500W | 6500W |
| Parallel Function | YES,12 Units | YES,12 Units |
| Communication Port | RS232+RS485+ External CT Port | RS232+RS485+ External CT Port |
| Battery Voltage | 48VDC | 48VDC |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
| Dimension, D xW x H(mm) | 448*315*122 | 450x300x130 |
Product Features.
- Self-consumption and Feed-in to the grid
- Programmable multiple operation modes: Grid-tie ,off-grid and grid-tie with backup
- Backflow prevention viaexternalCTsensor and grid connection function
- Paralleloperation up to12 unitsin1phaseor 3phase
- Direct Plug WlFl Dongle Supported
- Output power factor 1.0
- High PVinput voltagerange 500Vdc Max
- Built-in MPPTsolar controller100/120A
- WiFiremote monitoring optiona
- Detachable dustcoverforharshenvironment
- User-adjustable charging current and voltage
- Programmable supply priority for PV, Battery or Grid
- Support multiple output priority:SBU/SUB/SUF/ZEC
- EQ function to optimize battery performance and extend lifecycle
Company Introduction
Shenzhen First Tech Co., Ltd was established in 2017, which is a one-stop solution provider of solar & battery energy storage system.
First Tech is engaged in the research, development, production, sales and service of the commercial and industrial energy storage system, home energy storage system, lithium-ion battery pack, solar hybrid inverter. solar optimizer etc.
First Tech is located in Shenzhen City, Guangdong Province, China, the factory have passed lS09001,1S014001,1S045001 managementsystem certification and the products have obtained TUV-CB, CEIEC,EMC MSDS, UN38.3, etc certificates. The products are exported toclients in such countries and regions as Europe, Africa, Middle East,North America,South America, Southeast Asia, etc.
Except providing it's own standard products, First Tech also welcome OEM & ODM orders, and will provide professional service and quality products with competitive prices to customers and market.
First Tech is committed to becoming a global leading solar & ESS solution provider to provide green energy and contribute to cleanerworld.
Enjoy New Life, Starting with First Tech!
