5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time

  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
  • 5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
Plaats van herkomst Guangdong, China
Merknaam COENG
Certificering CE, IEC
Modelnummer EM (PV60-500VDC)
Document EM1.5-6.2.pdf
Min. bestelaantal 1
Verpakking Details Doos, pallet
Levertijd 10-30 werkdagen
Betalingscondities L/C, T/T, Western Union
Levering vermogen 20000 -stuk/maand

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails

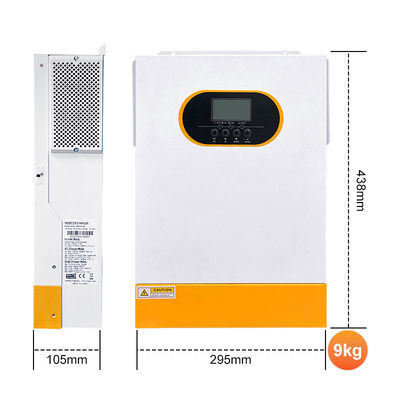

Maat 438*295*105mm Batterijspanning 24V/48V
Invoerspanning 230VAC OEM Accepteer OEM
Omvormer type hybride zonne -omvormer Uitgangstype Enkele, pure sinusgolf
Grof gewicht 9 kg
Markeren

48V hybrid solar inverter

,

MPPT pure sine wave inverter

,

off grid solar inverter with fast transfer
Laat een bericht achter
Productomschrijving

 EM3500-24L EM5500-48L EM6200-48L
Model Number EM3500-24L EM5500-48L EM6200-48L
Place of Origin China China China
Mounting Method Wall Bracket Wall Bracket Wall Bracket

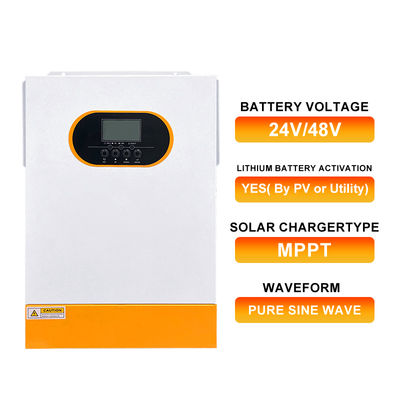

Nominal Battery Voltage (V) 24VDC 48VDC 48VDC
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility) YES( By PV or Utility)

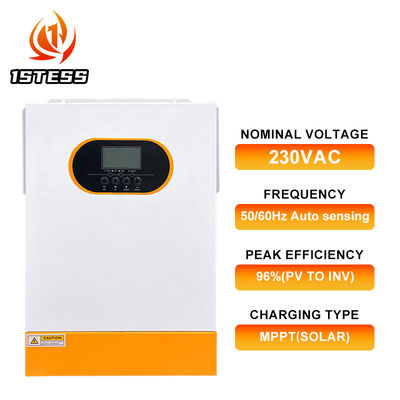

Nominal Voltage 230VAC 230VAC 230VAC
Lithium Battery communication YES(RS485) YES(RS485) YES(RS485)
Frequency 50/60Hz 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT MPPT
Communication Interface RS232+RS485 RS232+RS485 RS232+RS485
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC 60VDC~500VDC
Surge Power 7000VA 11000VA 1240VA
Size 358*295*100mm 438*295*105mm 438*295*105mm
Weight 7kg 9kg 9kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃) (-10'℃ to 50℃)
Product Features
  1. Lithium battery activation function by PV or Utility
  2. Compatible work with lifepo4 battery via Rs485
  3. PVInput 500Vdc Max
  4. Built-in MPPT60A/100A/120A
  5. Detachable dust coverforharsh environment
  6. Wifi remote monitoring optional
  7. Support multiple output priority:UTL,SOL,SBU,SUB
  8. EQ function to optimize battery performance and extend lifecycle
